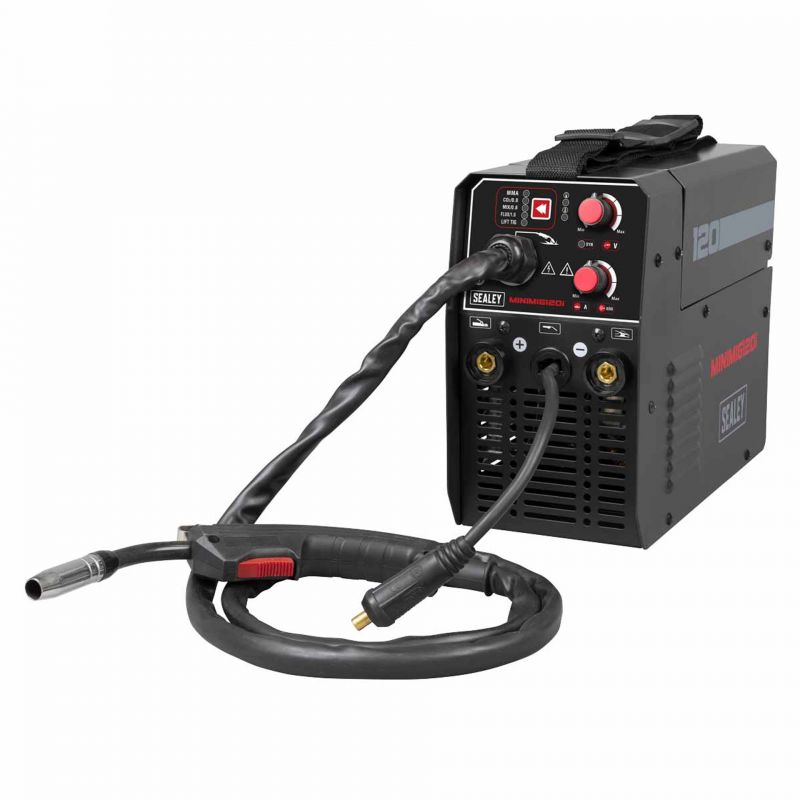

Sealey MINIMIG120i MIG/TIG & MMA (ARC/STICK) Inverter Welder - 230v
Sealey MINIMIG120i MIG/TIG & MMA (ARC/STICK) Inverter Welder - 230v
IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 120A. Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians. Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø3.2mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
Features:
Igbt inverter technology - igbt inverter fan-cooled dc power supply for mig/tig and mma/arc welding applications up to 120a.
3 in 1 function - multi-functional welder bringing together mig/tig and mma application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
highly portable - ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand.
featuring - hot start, anti-stick, forced air cooling and thermal cut out protection.
welding capability - unit can mig weld using 1kg ø0.8/0.9/1mm solid wire and ø0.8/ø0.9mm flux cored mig wire, mma/arc weld ø1.6 up to ø3.2mm electrode.

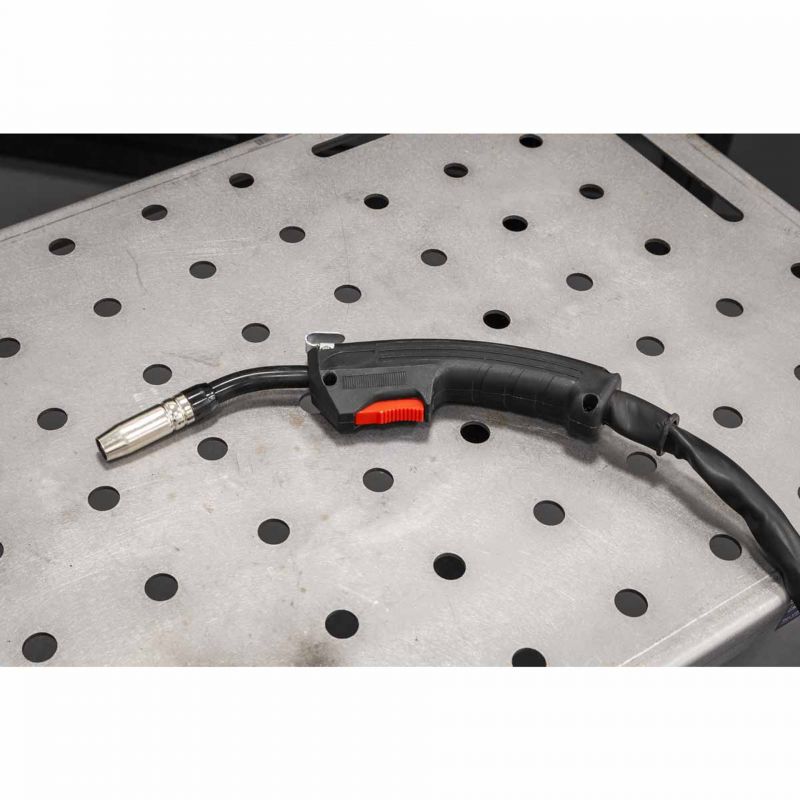

supplied with - supplied with fixed non-live mig torch, 1.4m earth cable/clamp, 1.6m electrode holder.
duty cycle mig - 60% @ 120a, tig - 60% @ 120a, mma/arc - 60% @ 120a.
Specification:
Model No MINIMIG120i
Brand: Sealey
Nett Weight: 6.9kg
Welding Current: 10-120A
Duty Cycle MIG: 60% @ 120A, 100% @ 76A
Duty Cycle MMA/ARC: 60% @ 120A, 100% @ 76A
Duty Cycle TIG: 60% @ 120A, 100% @ 76A
Wire Capacity: 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire,
Electrode Capacity: 1.6-3.2mm
Absorbed Power: 4.4kW
Supply: 230V 16A*
Insualtion Class: H
IP Rating: IP21S
Note* To achieve maximum power a 16A supply may be required.
Includes:
1x Sealey MINIMIG120i MIG/TIG & MMA (ARC/STICK) Inverter Welder - 230v
