Hyundai HYCP6570 60kg, 370cm, 196cc Petrol Compactor Plate Compactor / Wacker Plate
Product Code: HYCP6570
£379.97
Inc VAT
ADD TO BASKET
COMPACTING POWER FROM HYUNDAI

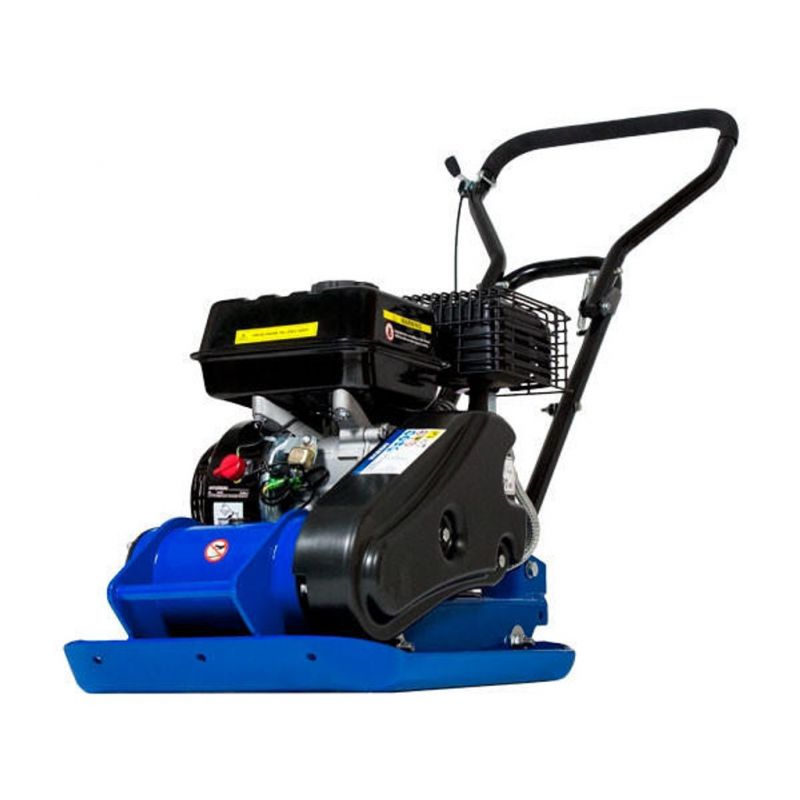

The HYCP6570 is a petrol compactor plate / wacker from Hyundai, powered by a efficient and reliable 196cc 4-stroke engine. Providing a cost-effective alternative to hiring, this machine is equipped with a large plate measuring 530mm x 370mm for completing even the largest of jobs quickly and easily, with a compaction depth of 250mm and a travelling speed of 25m/min. More than capable of compacting loose soil, gravel and sand to form a solid and level foundation, it's ideal for building driveways, patios, block pavements, decking and much more.
For users looking for a powerful, cost-effective and long running compactor plate, look no further than the HYCP6570.
BUILT TO THE HIGHEST STANDARDS
Hyundai compactor plate / wackers are built to the highest of standards, and the HYCP6570 is no different. The V-belt is protected by a rugged guard from the knocks and bumps associated with construction work, and it's also comfortable to use with a soft grip covering the handle.
Already a compact machine, the foldable handles allow you to store this compactor plate / wacker in confined spaces, such as your garage, shed or workshop. There's also an optional wheel kit available, for increasing the ease in which you can transport it from one job to the next.
NB. Wheel kit and paving pad not included in unit sale. Items are optional and can be purchased separately.

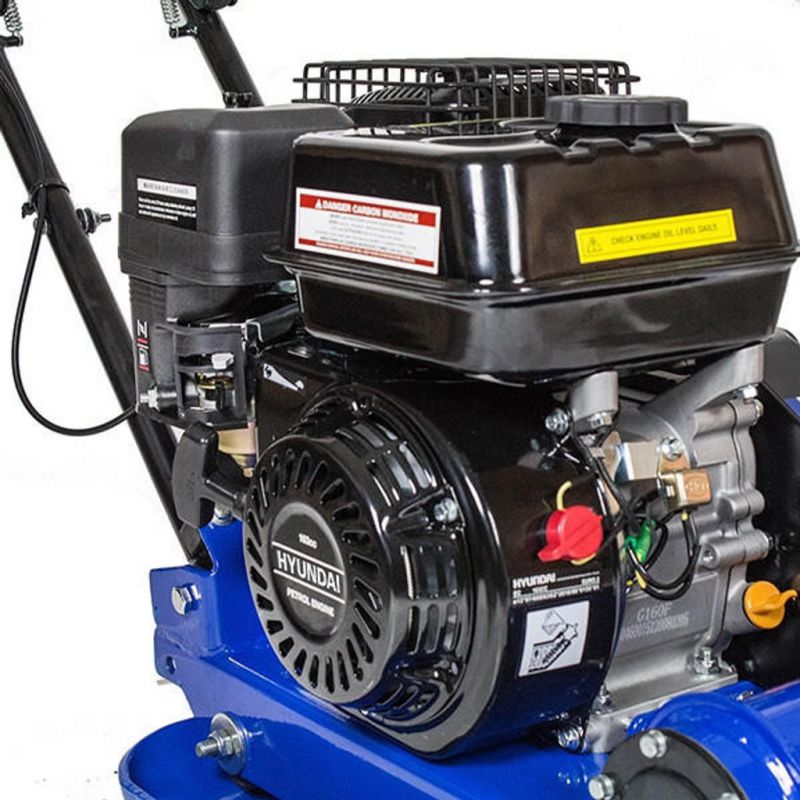

Powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
Equipped with a large fuel tank for long running.
Fitted with a 530mm x 370mm plate for working effectively on large areas.
Has a travelling speed of 25m/min, with a compaction depth of 250mm.
Optional wheel kit available for increased manoeuvrability.
Specifications
MODEL: HYCP6570
START METHOD: Recoil
COMPACTION DEPTH: 250
PLATE SIZE (MM): 530 x 370
CENTRIFUGAL FORCE (N): 11000
TRAVEL SPEED (M/MIN): 25
VIBRATION VALUE M/S²: 27.71
EXCITER OIL CAPACITY (ML): 80
EXCITER SPEED (RPM): 5500
HANDLE TYPE: Soft Grip
SAFETY FEATURES: Oil Alarm
ENGINE MODEL: 168F
ENGINE TYPE: Hyundai 4-Stroke
ENGINE SIZE (CC): 196
RATED POWER (HP): 5.2
RATED SPEED (RPM): 3600
FUEL: Unleaded Petrol
FUEL CAPACITY (L): 3.6
ENGINE OIL: SAE30 or SAE15W40
ENGINE OIL CAPACITY (ML): 600
SOUND LEVEL (DB): 91
GROSS WEIGHT (KG): 60
NET WEIGHT (KG): 58
FULLY ASSEMBLED DIMENSIONS (H X W X L) (MM): 890 x 385 x 1140
PACKAGE DIMENSIONS (H X W X L) (MM): 470 x 400 x 705
FUEL TYPE / POWER SOURCE: Petrol
