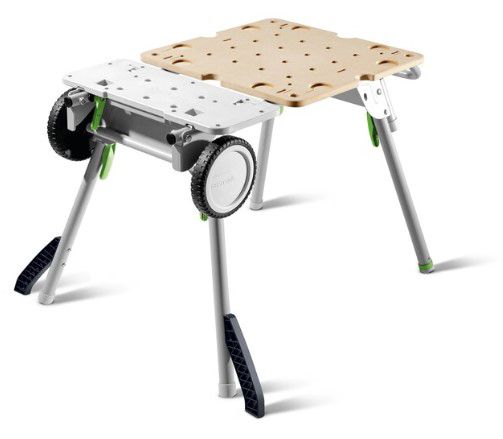

Festool 577001 UG-CSC-SYS Table Saw Underframe

The UG-CSC-SYS underframe is the ideal 3-in-1 solution for your assembly jobs. It acts as a hand cart for transport from the vehicle to the point of use – allowing you to easily roll an entire tower of Systainers of up to 80 kg to the construction site. The foldaway legs are folded out in an instant, giving you a worktable of 58 x 58 cm in size; a practical alternative to trestles. Workpieces are securely clamped on the surface via the perforated top. However, the underframe demonstrates its full ability in combination with the CSC SYS 50 cordless table saw. This is securely positioned in the holes of the work space – and already you're working at an ergonomic height of 90 cm. The legs simply remain folded in when using the CSC SYS 50 cordless table saw close to the ground, e.g. when laying a floor. The "shovel" that just served as a transport surface for the Systainers is now set up as an ideal support for long workpieces for all rip cuts, cross cuts and angled cuts.

Ideal underframe for CSC SYS table saw installation

Suitable for transporting Systainers in the tower in its role as a hand cart, the blade bears 80 kg.

Suitable as a mobile worktable with a load of 100 kg

Specification:

Table dimensions: 580 x 580 mm

Dimensions (L x W x H): 1 067 x 580 x 245 mm

Tabletop height: High working position: 677.00 mm

Tabletop height: Low working position: 245.00 mm

Load capacity as worktable/hand truck: 100 / 80 kg

Product weight without accessories: 18.10 kg

Transport weight incl. accessories:25.20 kg
