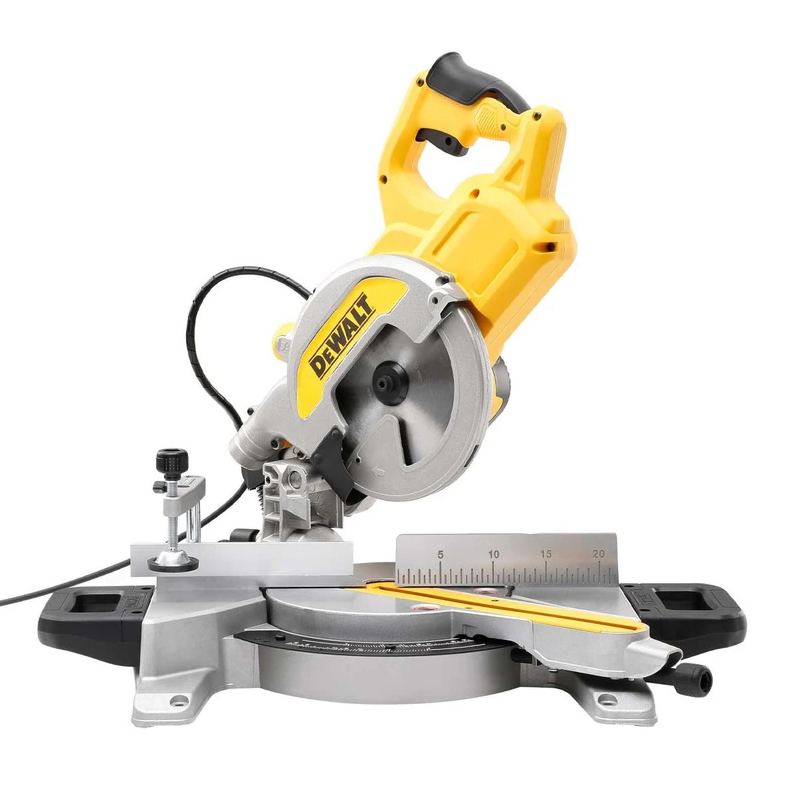

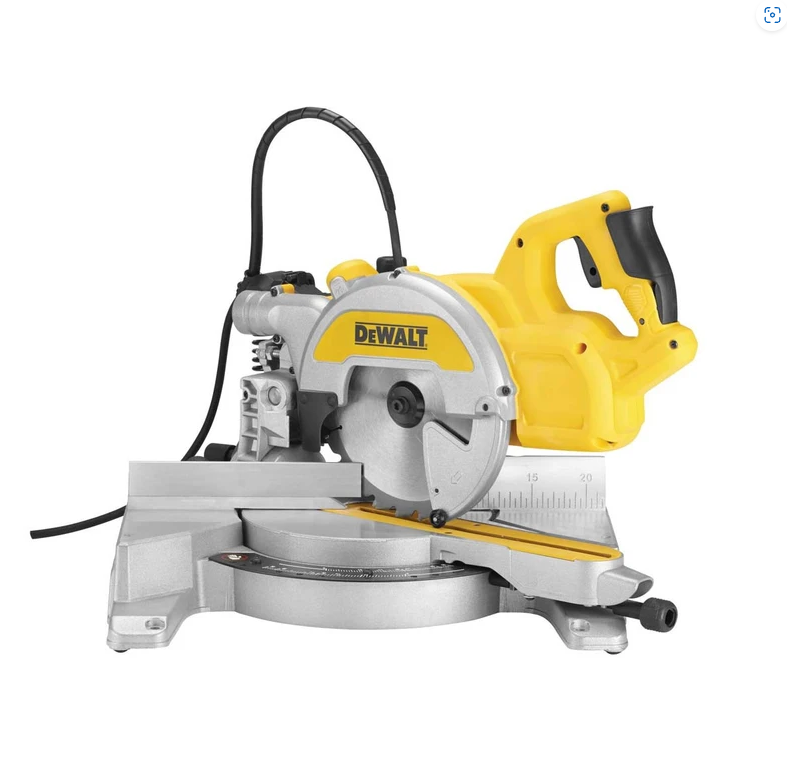

Dewalt DWS777-GB 216mm XPS Sliding Mitre Saw - 240v

The DEWALT DWS777 216mm XPS Crosscut Mitre Saw has been fully upgraded from the previous model. It includes XPS Shadow Line cut technology for accurate alignment and a DEWALT Airlock compatible dust port. It has a traditional pull and tilt design. The fence and base have been re-engineered to new standards making this saw more accurate and heavy-duty. There's a new head lock feature which enables users to fix the head of the saw and therefore restrict the traverse, perfect for trimming and groove cutting. With 5 pre-set mitre stops at 0°/15°/22.5°/30°/45°, as well as fixed left and right hand fences with measurements on them.

Features:

1800 Watt motor for powerful cutting in all materials (1600 Watt Low Voltage version UK Only)

XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

New Single Point Dust Extraction Airlock compatible

The base and fence have been machined to meet the accuracy requirements of the most demanding applications

Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation

Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°

Sliding left hand fence with measuring scale for improved material support and management

Compact internal rail design for huge cutting capacity in a highly transportable format

Specification:

Power Input - 1800 Watts

Power Output - 1100 Watt

Blade Speed - 6300 rpm

Blade Diameter - 216 mm

Blade Bore - 30 mm

Bevel Capacity - 48 °

Mitre Capacity [right/left] - 50/50 °

Cutting Capacity at 90°/45° (W x H) - 173 x 62 mm

Cutting Capacity at 90°/90° (W x H) - 270 x 62 mm

Cutting Capacity at 90°/90° (W x H) - 270 x 60 mm

Cutting Capacity at 45°/90° (W x H) - 189 x 62 mm

Cutting Capacity at 45°/90° (W x H) - 190 x 60 mm

Cutting Capacity at 90°/45° (W x H) - 270 x 48 mm

Max. Cutting Capacity at 45°/45° - 190x48 mm

Max. Depth of Cut [Saws] - 80 mm

Weight - 14.0 kg

Depth - 550 mm

Length - 490 mm

Height - 590 mm

Hand/Arm Vibration - Cutting Wood - 2.1 m/s²

Uncertainty K 1 (Vibration) - 1.5 m/s²

Sound Power - 104 dB(A)

Sound Power Uncertainty - 3.9 dB(A)

Sound Pressure - 93 dB(A)

Sound Pressure Uncertainty - 3 dB(A)

Supplied With:

TCT tooth saw blade

Blade Allen Keys

Material Clamp
