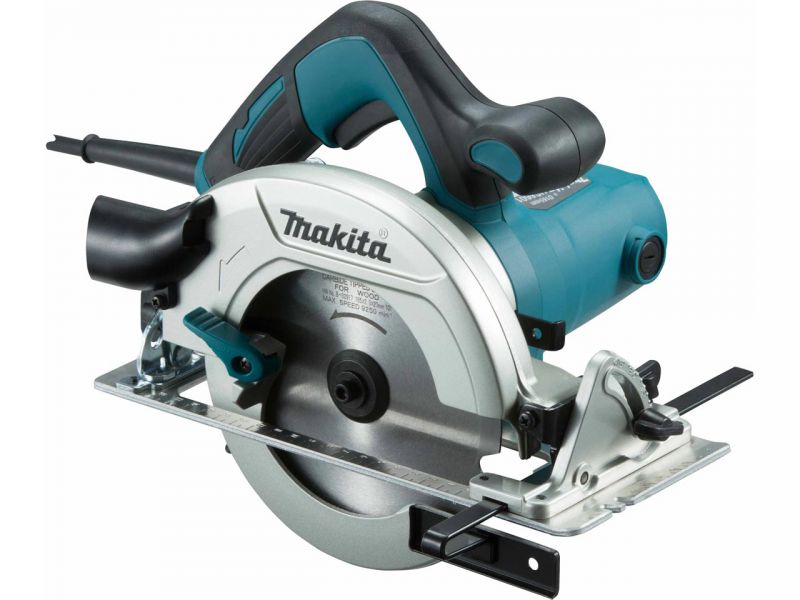

The Makita model HS6601 is a 165mm (6-1/2") Circular Saw and has been developed as the successor to the 5604R. The flat motor housing design increases stability when changing blades. A rear dust exhaust post exhausts sawdust backward only, preventing it from scattering around to provide comfortable operation. The HS6601 is supplied with dust nozzle, rip fence (guide rule), tct saw blade and hex wrench.
Features:
Compact & Lightweight
Ergonomic soft grip
Rear dust exhaust port
Rear angular guide for smooth and precise adjustment of bevel angle
Single action lever for quick adjustment of cutting depth
Aluminium die-cast safety cover
Aluminium base plate
Aluminium die-cast blade casing
Flat motor housing end
Compatible with Guide Rail
Specification:
Depth of Cut @ 90° - 54.5 mm
Blade Diameter - 165 mm
Depth of Cut @ 45º - 37.5 mm
Bore Diameter - 20 mm
Noise sound pressure - 87 dB(A)
Noise sound power - 98 dB(A)
Noise K factor - 3 dB(A)
Input Wattage - 1050 w
No Load Speed - 5200 rpm
Vibration K factor - 1.5 m/sec²
Vibration: Cutting Wood - 2.5 m/sec²
Net weight - 3.7 kg
Supplied With:
Dust nozzle
Rip fence (Guide rule)
TCT saw blade
Hex wrench
