Dewalt DWS774 216mm XPS Slide Mitre Saw -240v

Dewalt DWS774 216mm XPS Slide Mitre Saw -240v

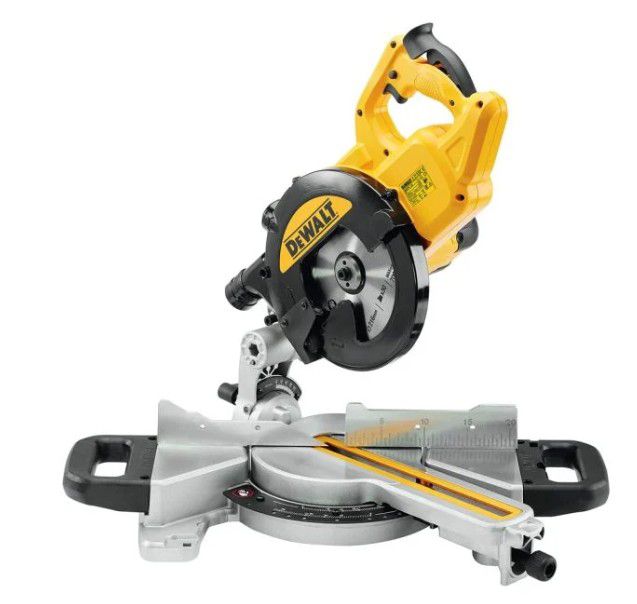

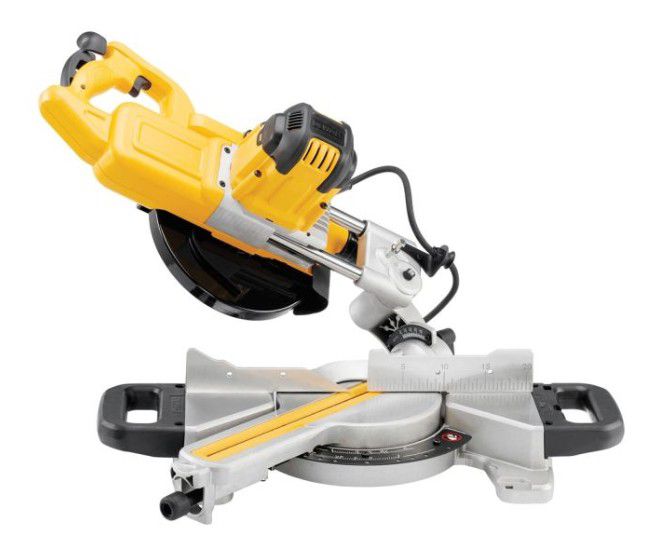

The DeWalt DWS774 216mm Mitre Saw has a classic saw design improved and updated for the modern user. New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only) XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required.

Features:
Improved Dust extraction efficiency
The base and fence have been machined to meet the accuracy requirements of the most demanding applications
New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
Fixed left & right hand fences with measuring scale for improved material support and management
Compact internal rail design for huge cutting capacity in a highly transportable format
Carry side handles for east transportation
Designed for wood cutting only and must not be used to cut any metal (Ferrous or Non Ferrous)

Specification:
Power Input: 1400 Watts
Power Output: 1100 Watt
Blade Speed: 4500 rpm
Blade Diameter: 216 mm
Blade Bore: 30 mm

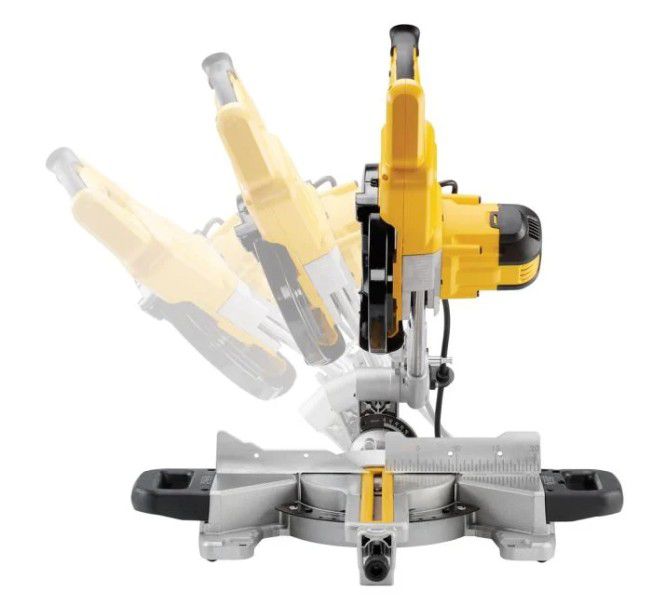

Bevel Capacity: 48 °
Mitre Capacity [Right/Left]: 48/48 °
Cutting Capacity at 90°/45° (WxH): 173 x 62 mm
Cutting Capacity at 90°/90° (WxH): 250 x 62 mm
Cutting Capacity at 90°/90° (WxH): 250 x 60 mm
Cutting Capacity at 45°/90° (WxH): 177 x 62 mm
Cutting Capacity at 45°/90° (WxH): 177 x 60 mm
Cutting Capacity at 90°/45° (WxH): 265 x 48 mm
Max Cutting Capacity at 45°/45°: 190x48 mm
Max Depth of Cut [Saws]: 70 mm
Weight: 12.0 kg
Depth: 550 mm
Length: 490 mm
Height: 590 mm

Noise & Vibration:
Hand/Arm Vibration - Cutting Wood: 2.1 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Sound Power: 104 dB(A)
Sound Power Uncertainty: 3.9 dB(A)
Sound Pressure: 93 dB(A)
Sound Pressure Uncertainty: 3 dB(A)

Includes:
1x DWS774 Mitre Saw
1x TCT Tooth Saw Blade
1x Blade Spanner
1x Material Clamp
