The Dewalt range of circular saws are compact, well balanced and easy to use circular saws with a range of depths of cut and voltages. With quick and easy depth and angle adjustment and high torque motors, these circular saws offer durability and power for cutting jobsite and joinery materials.

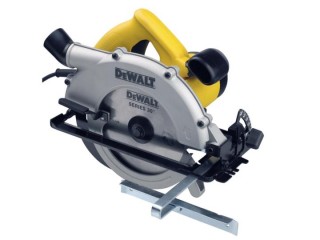

The Dewalt D23620K is a robust, well balanced and easy to use circular saw with a 184mm blade and a 62mm depth of cut.

This Dewalt D23620K has quick and easy depth and angle adjustment for any job application, and is equipped with a high torque motor that gives durability and power for cutting jobsite and joinery materials.

With pressed steel shoe for strength and durability and efficient dust extraction port to minimize airborne dust particles when connected to an extractor unit or vacuum.

The gears and drive spindles are mounted in a durable cast aluminium housing, and guiding notches at 90 and 45 degrees provide good cut line visibility.

A large retraction lever enables safe operation of lower guard.

Specifications

Power Input: 1,150 Watts.
Power Output: 570 Watts.
No Load Speed: 5,000 /min.
Blade Diameter: 184 mm.
Blade Bore: 16 mm.
Bevel Capacity: 50 °.
Max. Depth of Cut
at 90°: 62 mm.
at 45°: 45 mm.
Weight: 5.1 kg.

Includes: 18 tooth SERIES 30® saw blade, rip fence, blade spanner, heavy-duty carrying case.
